Get toll transaction

GET

api

{version}

tolls

{id}

Get toll transaction

curl --request GET \
  --url https://integrations.alvys.com/api/p/v{version}/tolls/{id} \
  --header 'Authorization: Bearer <token>'

const options = {method: 'GET', headers: {Authorization: 'Bearer <token>'}};

fetch('https://integrations.alvys.com/api/p/v{version}/tolls/{id}', options)
  .then(res => res.json())
  .then(res => console.log(res))
  .catch(err => console.error(err));

<?php

$curl = curl_init();

curl_setopt_array($curl, [
  CURLOPT_URL => "https://integrations.alvys.com/api/p/v{version}/tolls/{id}",
  CURLOPT_RETURNTRANSFER => true,
  CURLOPT_ENCODING => "",
  CURLOPT_MAXREDIRS => 10,
  CURLOPT_TIMEOUT => 30,
  CURLOPT_HTTP_VERSION => CURL_HTTP_VERSION_1_1,
  CURLOPT_CUSTOMREQUEST => "GET",
  CURLOPT_HTTPHEADER => [
    "Authorization: Bearer <token>"
  ],
]);

$response = curl_exec($curl);
$err = curl_error($curl);

curl_close($curl);

if ($err) {
  echo "cURL Error #:" . $err;
} else {
  echo $response;
}

package main

import (
	"fmt"
	"net/http"
	"io"
)

func main() {

	url := "https://integrations.alvys.com/api/p/v{version}/tolls/{id}"

	req, _ := http.NewRequest("GET", url, nil)

	req.Header.Add("Authorization", "Bearer <token>")

	res, _ := http.DefaultClient.Do(req)

	defer res.Body.Close()
	body, _ := io.ReadAll(res.Body)

	fmt.Println(string(body))

}

{
  "Id": "<string>",
  "Source": "<string>",
  "Agency": "<string>",
  "PrePaid": true,
  "Amount": {
    "Amount": 123,
    "Currency": 123
  },
  "TransactionDate": "2023-11-07T05:31:56Z",
  "SubsidiaryId": "<string>",
  "TransactionId": "<string>",
  "TransponderId": "<string>",
  "UnitId": "<string>",
  "UnitNumber": "<string>",
  "LicenseState": "<string>",
  "LicensePlate": "<string>",
  "Service": "<string>",
  "CostCenter": "<string>",
  "EntryLane": "<string>",
  "EntryPlazaId": "<string>",
  "EntryPlazaName": "<string>",
  "EntryTime": "2023-11-07T05:31:56Z",
  "ExitLane": "<string>",
  "ExitPlazaId": "<string>",
  "ExitPlazaName": "<string>",
  "ExitTime": "2023-11-07T05:31:56Z",
  "FormattedLocation": "<string>",
  "RunningBalance": {
    "Amount": 123,
    "Currency": 123
  },
  "Fee": {
    "Amount": 123,
    "Currency": 123
  },
  "PostedAt": "2023-11-07T05:31:56Z"
}

{
  "Type": "<string>",
  "Title": "<string>",
  "Status": 123,
  "Detail": "<string>",
  "Instance": "<string>"
}

{
  "Type": "<string>",
  "Title": "<string>",
  "Status": 123,
  "Detail": "<string>",
  "Instance": "<string>"
}

{
  "Type": "<string>",
  "Title": "<string>",
  "Status": 123,
  "Detail": "<string>",
  "Instance": "<string>"
}

{
  "Type": "<string>",
  "Title": "<string>",
  "Status": 123,
  "Detail": "<string>",
  "Instance": "<string>"
}

{
  "Type": "<string>",
  "Title": "<string>",
  "Status": 123,
  "Detail": "<string>",
  "Instance": "<string>"
}

The Retrieve Toll Transaction by ID API endpoint allows you to retrieve detailed information about a specific toll transaction using its unique ID. This endpoint provides comprehensive data about the toll transaction, facilitating effective tracking and management within the Alvys system.

Request Parameters

The following parameters are required in the URL path:

Parameter	Type	Required	Description
version	String	Yes	The API version to use.
id	String	Yes	The unique identifier of the toll transaction.

Example CURL request

curl --location 'https://integrations.alvys.com/api/p/v{version}/tolls/{id}' \
--header 'Authorization: Bearer YOUR_ACCESS_TOKEN'

Replace {version} with the API version number, {id} with the actual toll ID, and YOUR_ACCESS_TOKEN with your actual Bearer token:

curl --location 'https://integrations.alvys.com/api/p/v1/tolls/00c8d000-00c0-0000-ba60-000e0f0e0ae0' \
--header 'Authorization: Bearer eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ....'

Response Parameters

The following table lists the parameters included in the response for toll transaction-related requests:

Parameter	Type	Required	Description
Id	String	Yes	The unique identifier of the toll transaction.
SubsidiaryId	String	No	The subsidiary ID associated with the transaction.
TransactionId	String	No	The external transaction ID from the toll provider.
TransponderId	String	No	The transponder ID associated with the transaction.
Source	String	Yes	The toll provider (e.g., PrePass, BestPass, IPass).
Agency	String	Yes	The tolling agency that issued the transaction.
UnitId	String	No	The Alvys unit ID associated with the transaction.
UnitNumber	String	No	The unit number associated with the transaction.
LicenseState	String	No	The state where the vehicle is licensed.
LicensePlate	String	No	The license plate of the vehicle.
PrePaid	Boolean	Yes	Indicates whether the toll was prepaid.
Service	String	No	The toll road or service (e.g., Texas Toll Roads, PA Turnpike).
CostCenter	String	No	The cost center associated with the transaction.
EntryLane	String	No	The lane used at entry.
EntryPlazaId	String	No	The identifier of the entry plaza.
EntryPlazaName	String	No	The name of the entry plaza.
EntryTime	String (Date-Time)	No	The date and time of entry.
ExitLane	String	No	The lane used at exit.
ExitPlazaId	String	No	The identifier of the exit plaza.
ExitPlazaName	String	No	The name of the exit plaza.
ExitTime	String (Date-Time)	No	The date and time of exit.
FormattedLocation	String	No	The formatted location of the toll transaction.
Amount	Object	Yes	The toll amount.
Amount.Amount	Number	Yes	The monetary value of the toll.
Amount.Currency	Integer	Yes	The currency identifier of the toll amount.
RunningBalance	Object	No	The running account balance after the transaction.
RunningBalance.Amount	Number	No	The monetary value of the running balance.
RunningBalance.Currency	Integer	No	The currency identifier of the running balance.
Fee	Object	No	The fee charged for the transaction.
Fee.Amount	Number	No	The monetary value of the fee.
Fee.Currency	Integer	No	The currency identifier of the fee.
PostedAt	String (Date-Time)	No	The date and time when the transaction was posted.
TransactionDate	String (Date-Time)	Yes	The date and time when the toll transaction occurred.

Example Response

On the right side, you can see examples of different error codes by clicking “Example” and selecting the response code.

Rate Limits

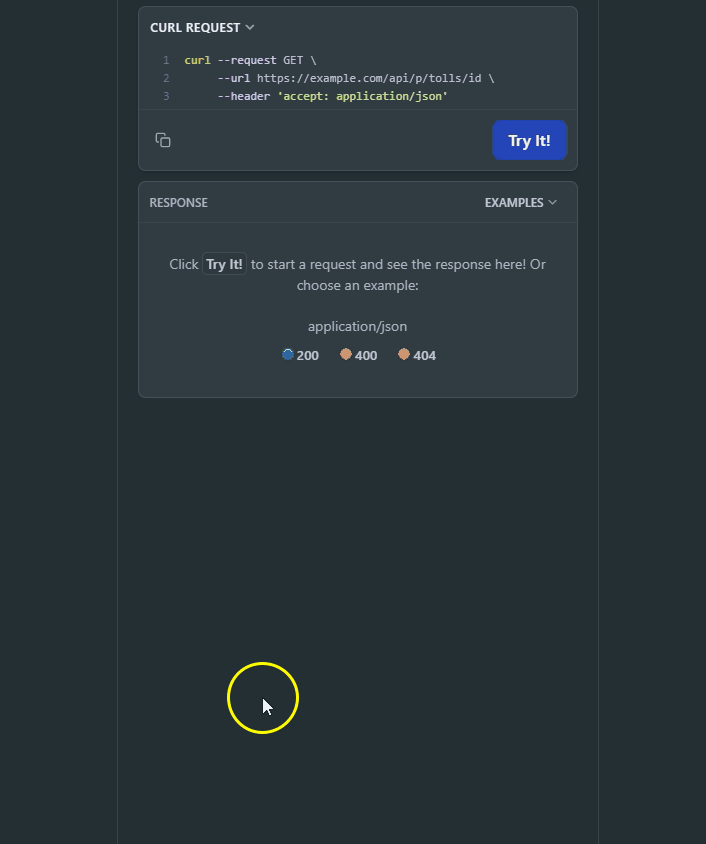

All endpoints are subject to rate limits to protect the API from traffic spikes. For detailed information on rate limits, please refer to the Rate Limits section. This page is interactive, allowing you to try a request by providing the toll transaction ID in the URL path. As you fill out the parameters, the Curl command on the right side of the page will be automatically updated. Alternatively, you can directly edit the Curl command. Make sure to authorize yourself before trying a request.

Authorizations

Authorization

string

header

required

OAuth 2.0 client-credentials access token. Obtain one from https://auth.alvys.com/oauth/token (grant_type=client_credentials, audience=https://api.alvys.com/public/), then paste it here. The playground sends it as Authorization: Bearer <token>.

Path Parameters

string

required

version

string

default:1.0

required

API version (e.g., 1.0)

Example:

"1.0"

Response

string

required

Source

string

required

Agency

string

required

PrePaid

boolean

required

Amount

object

required

Show child attributes

TransactionDate

string<date-time>

required

SubsidiaryId

string | null

TransactionId

string | null

TransponderId

string | null

UnitId

string | null

UnitNumber

string | null

LicenseState

string | null

LicensePlate

string | null

Service

string | null

CostCenter

string | null

EntryLane

string | null

EntryPlazaId

string | null

EntryPlazaName

string | null

EntryTime

string<date-time> | null

ExitLane

string | null

ExitPlazaId

string | null

ExitPlazaName

string | null

ExitTime

string<date-time> | null

FormattedLocation

string | null

RunningBalance

object | null

Show child attributes

Fee

object | null

Show child attributes

PostedAt

string<date-time> | null
